CH-001
Short-Arm Concealed Soft-Close Cabinet Hinge
Current source records list CH-001 as a short-arm concealed cabinet hinge with 35mm cup, clip-on and soft-close fields. Confirm the exact version before quotation.
View product detailsFurniture hardware / 5 products
Concealed Cabinet Hinges for project-based sourcing.
Compare five concealed hinge options by opening angle, door-panel thickness and installation format. Confirm the exact configuration before quotation.
Compare 5 productsChoose by application
Use the requirement to narrow the shortlist.
01
Standard-angle cabinet doors: compare CH-001, CH-002, CH-004 and CH-005.
02
Wide-opening cabinet access: start with CH-003 and confirm the 165 degree requirement.
03
Overlay selection: specify full overlay, half overlay or inset before quotation.
Product range
Compare the source-listed options.
Source-listed fields are not a confirmed availability matrix. Each product version and option combination requires written confirmation.

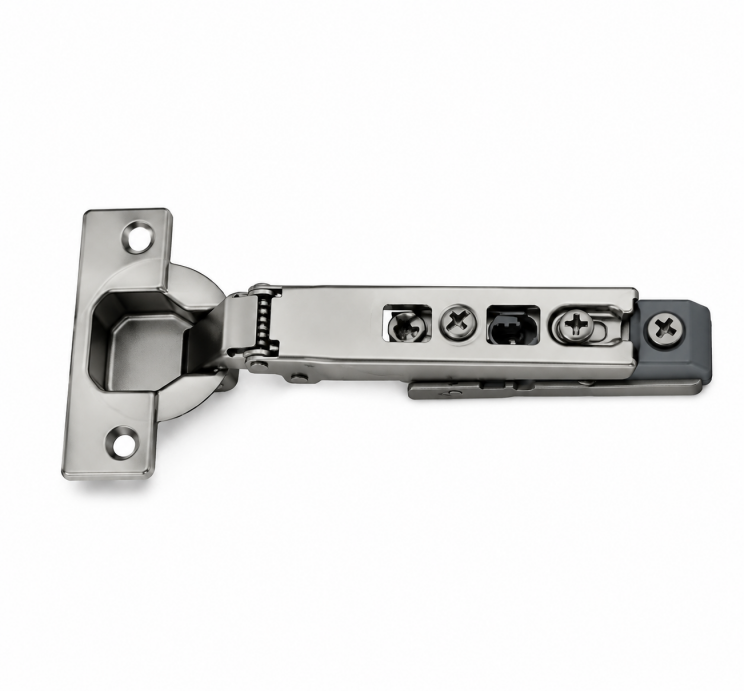

CH-002
Concealed Soft-Close Cabinet Hinge
Current source records list CH-002 with 35mm cup, clip-on, soft-close and multiple opening-angle fields. Confirm the exact version before quotation.
View product details
CH-003
165 Degree Wide-Angle Soft-Close Hinge
Current source records list CH-003 as a wide-angle concealed cabinet hinge with a 165 degree field. Confirm the exact version and application before quotation.
View product details
CH-004
35mm Clip-On Soft-Close Cabinet Hinge
Current source records list CH-004 with 35mm cup, clip-on, soft-close and multiple overlay fields. Confirm the exact version before quotation.
View product details

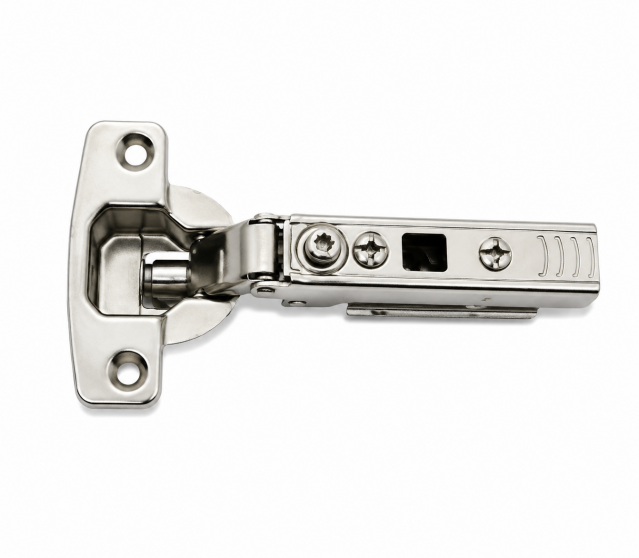

CH-005
35mm Concealed Soft-Close Cabinet Hinge
Current source records list clip-on and slide-on fields for CH-005. Confirm whether these refer to separate product versions before quotation.
View product detailsQuick comparison
Compare the source-listed fields.
Source-listed fields are not a confirmed availability matrix. Material, finish, dimensions, load and installation details require final confirmation for each product version.
| SKU | Source-listed opening angle | Source-listed door / thickness | Source-listed installation / type | |
|---|---|---|---|---|
| CH-001 | 95 / 105 / 110 degrees | 14-22mm | Clip-on | View details |
| CH-002 | 95 / 105 / 110 degrees | 14-22mm | Clip-on | View details |
| CH-003 | 165 degrees | 16-25mm | Clip-on | View details |
| CH-004 | 95 / 105 / 110 degrees | 14-22mm | Clip-on | View details |
| CH-005 | 95 / 105 / 110 degrees | 14-22mm | Clip-on / slide-on | View details |
Family inquiry
Not sure which SKU fits?
Share the application, dimensions, expected quantity and target market. Our team will reply using the contact details provided.
